VT20R – 2020 Subaru WRX STI Rally Car

The 2020 Subaru WRX STIs are modified to create rally cars that are light, tough, and fast as all get out. Two of these beasts are run in the OPEN 4WD Class in the American Rally Association (ARA) National Championship: #199 WRX STI, driven by Travis Pastrana, and #180 WRX STI, driven by Brandon Semenuk.

The transition from stock STI to rally car is extensive and impressive, from the chassis to what’s under the hood to the exterior body and interior elements.  Cases in point: a multipoint roll cage custom-built from T45 steel is welded into place for added safety and rigidity;  a 2.0-liter, 4-cylinder, turbocharged and intercooled SUBARU BOXER® engine with an ARA Championship-mandated 34mm turbo inlet restrictor is designed for longevity and response while still producing approximately 330bhp and 400 lb-ft. of torque.

For more on the modifications, from gearbox to seats and carbon fiber elements, visit the Subaru Motorsports page: https://www.subaru.com/content/subaru/en/motorsports/cars/rally.html

SRTUSA 2020 Open Class Rally Car
2020 Subaru WRX STI Open Class Rally Car (VT20r)
Prepared by Vermont SportsCar

Engine
Horizontally Opposed 4-cylinder
Turbocharged and Intercooled
Garrett Motorsport Turbo
Approx. 330 bhp and 400 lb-ft torque
(With an ARA OPEN 4WD Class-mandated 34mm Restrictor and 27psi Boost Limit)
Garrett Motorsport Turbo

Engine Management
Cosworth Pectel SQ6M ECU

Electrical
PRS Lightweight Motorsport Wiring Loom
Programmable Power Control Module and Switch Units
GEMS Data Logger

Weight
Regulated Minimum Limit of 2,900 lbs.

Transmission & Drive System
SADEV 6-speed Sequential Dog-engagement Gearbox
SADEV Custom Driveshafts
SADEV Custom Propshaft
Motorsport Controlled Central Drive Release

Clutch
Tilton Racing Clutch

Differentials
SADEV (Front & Rear)

Suspension
Reiger Competition Suspension
Vermont SportsCar Tubular Front and Rear Cross Members
Vermont SportsCar Suspension Arms and Links
Vermont SportsCar Modified STI Hubs and Spindles

Brakes / Gravel Spec
Alcon Gravel Rally Brake Calipers
Lightweight 12-inch Floating Rotors
Endless Brake Pads
Vermont SportsCar Hydraulic Handbrake

Exhaust System
Vermont SportsCar Custom Exhaust Manifold
Vermont SportsCar Stainless Steel 3-inch Quick-Change System

Wheels
METHOD Race Wheels MR502 VT-Spec 15×7 Gravel Rally Wheel

Tires
Yokohama ADVAN A053 15″ Gravel Rally Tire

Roll Cage / Shell Prep
Seam-welded Shell
Vermont SportsCar ARA / FIA Open Class Specification Roll Cage

Seats
RECARO SPA ProRacer with HANS (Head & Neck Restraint)

Lights
PIAA HID Driving Lights
Vermont SportsCar Carbon Fiber, Hood and Bumper-Mounted Light Pods

Interior
Vermont SportsCar Carbon Fiber Dashboard
Vermont SportsCar Carbon Fiber Door Cards
Vermont SportsCar Carbon Fiber Co-driver Footrest
Schroth Enduro Harnesses
GEMS Digital Driver and Co-driver Displays

Fuel Cell
Under-floor FIA FT3.5 Fuel Cell (75+ Liters)

Body
Vermont SportsCar Wide Body Kit
Vermont SportsCar Composite Under-floor Protection
Vermont SportsCar Carbon Fiber Rear Wing
Vermont SportsCar Carbon Fiber Roof Scoop
Vermont SportsCar Carbon Fiber Sump Guard
Vermont SportsCar Stainless Steel Differential Guard

Misc.
Heated Front Windshield
Vermont SportsCar Polycarbonate Side and Rear Windows
STI Quick Ratio Steering Rack (11:1 Ratio)
Motorsport High-flow Power Steering Pump

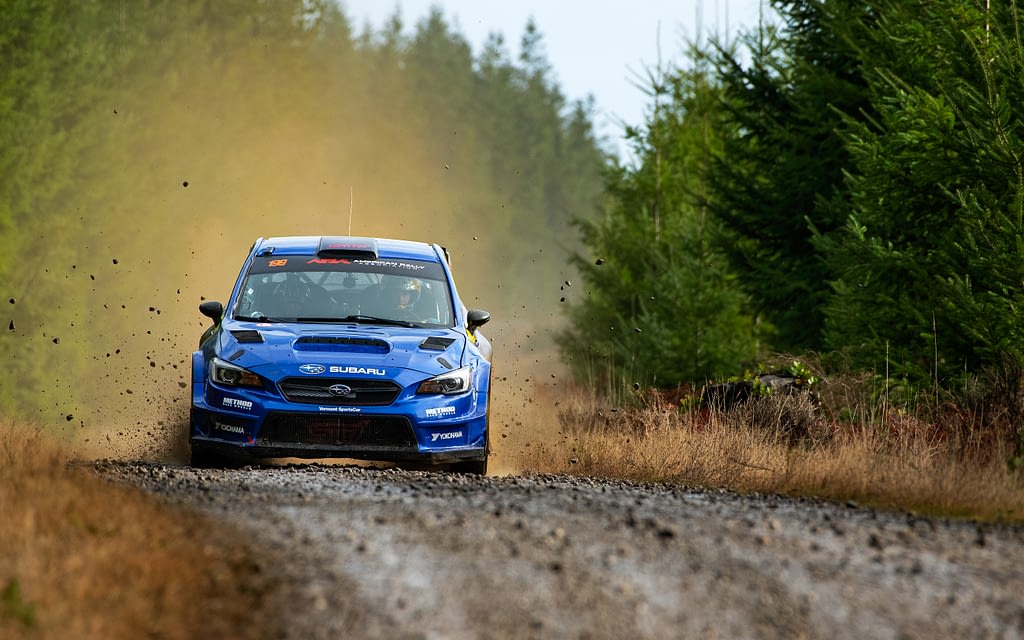

2020 VT20R Olympus Rally Pastrana
