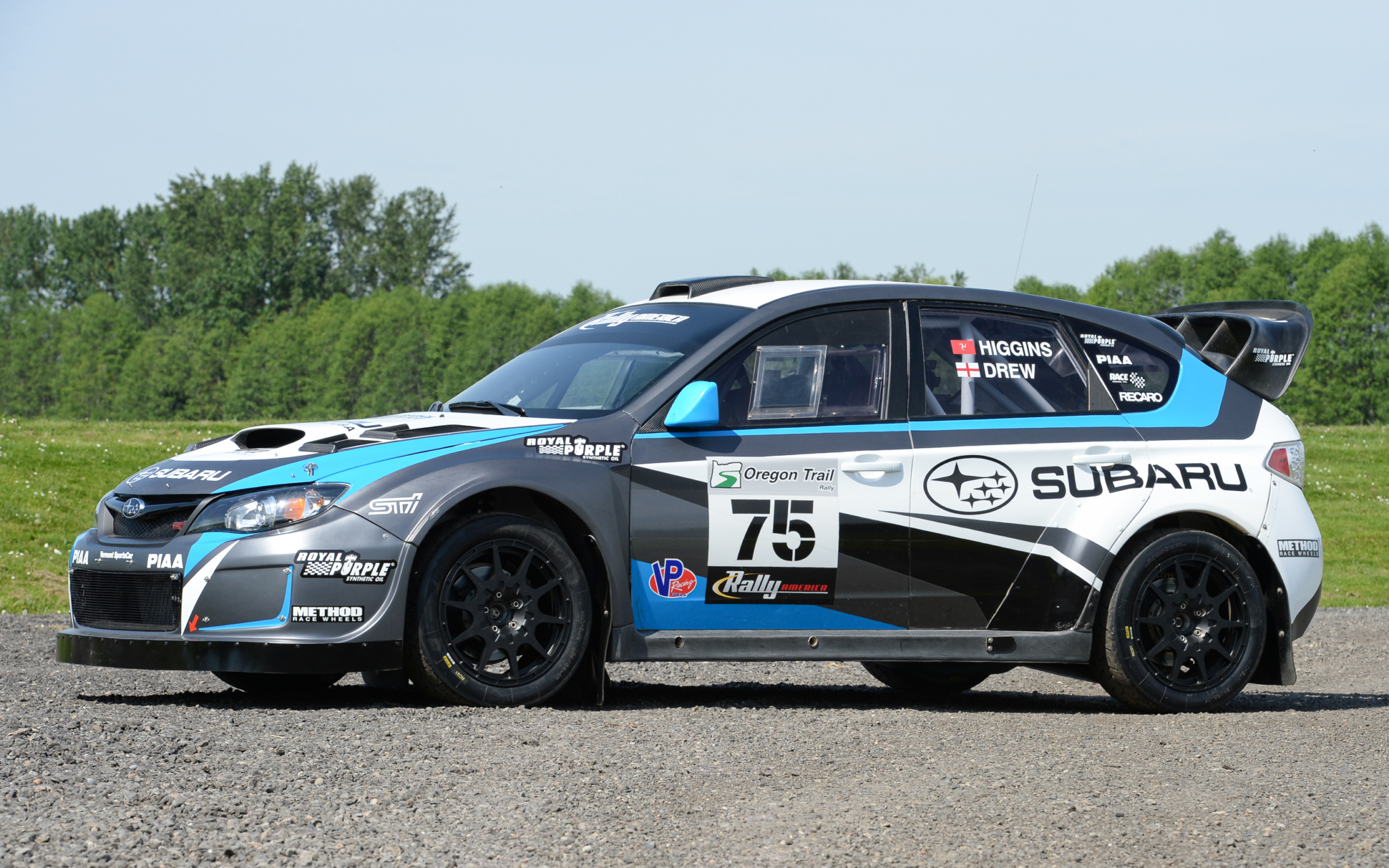

2014 VT14R Exterior Side

VT14r

VT14r – 2014 Open Class Rally Car

Built new for the 2014 rally season for drivers Travis Pastrana and David Higgins, this is the final iteration of the Vermont SportsCar built GR chassis Subaru WRX STI.  Originally entered in the Rally America Championship, the car also that conforms to all current American Rally Association technical regulations. This car dominated the 2014 Rally America Championship winning seven of the eight rounds.

Chassis
2008-2014 Subaru STI Shell
FIA Approved Roll Cage
MSK UK Certificate

Engine
Twin Belt WRC 2.0L GT Motorsports
Precision Turbo “WRC 5358” w/34mm Restrictor
Inconel Exhaust Manifold
Lightweight 321 Slip Fit Exhaust w/ Cat
TIAL Wastegate
ALS System (ARA Compliant)
Tilton Light Weight Flywheel

Electronics
Cosworth Pectel SQ12M
Cosworth DB1 Logger
OBR PDM
OBR Driver and Codriver Membrane Switch Panels (MSP)
GEMS LDS3 Driver Display
GEMS LDS3 Codriver Display
GEMS DA3 Logger
Shiftec Wastegate Controller
Viair Compressor

Drivetrain
Sadev 6 Speed Sequential Gearbox
Sadev Center Release Unit
Sadev Rear Differential
Tilton Multi Disc Carbon Clutch
Sadev and RCV Driveshafts

Brake System
AP Racing Front & Rear Calipers
AP Racing Two-Piece Discs
Endless ME20 Brake Pads
VSC Hydraulic Handbrake
Tilton Floor-Mount Pedal Box

Fuel System
Twin Bosch 8-Bar Main Pumps
Four Bosch Lift Pumps
80-Liter ATL Custom Fuel Cell

Steering
2015+ STI Steering Rack
1.5:1 Steering Quickener
Reverie Rally 330 Carbon Steering Wheel

Suspension
Reiger VSC Spec Gravel Dampers
Raised Strut Towers
Tubular Crossmembers
Aurora Bearing Suspension Joints
VSC Spec Subaru Uprights
VSC Light Weight Wheel Bearings
WRC Rear Roll Bar

Wheels/Tires
Method Racing ET15 VSC Spec Wheels
Yokohama Medium Gravel Tires
Provisions for Two Spares

Body
Twintex Front Bumper
Twintex Wide Body Fenders
Lightened Front Doors (with Honeycomb)
Composite Rear Doors
Carbon Kevlar Rear Quarters
REM Heated Windscreen

Protection
Carbon Fiber Floor Guards
Composite/Aluminum Sump Guard
Stainless Steel Fuel Cell Guards
Stainless Steel Rear Diff Guard (w/ LDPE Horizontal Flaps)
Twintex Arch Liners
Cast Polyurethane Mudflaps

Safety Equipment
Schroth Hans Belts
FEV In-Car Fire System
Handheld Fire Bottle
Recaro SPA Pro HANS

Intercom
Peltor FMT200

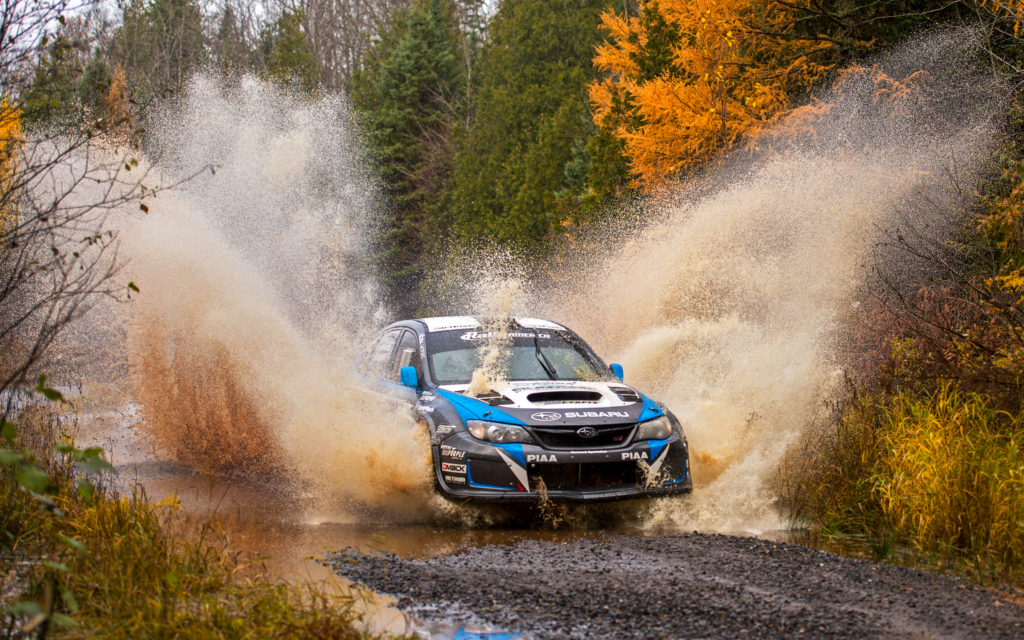

2014 VT14R LSPR Water Splash

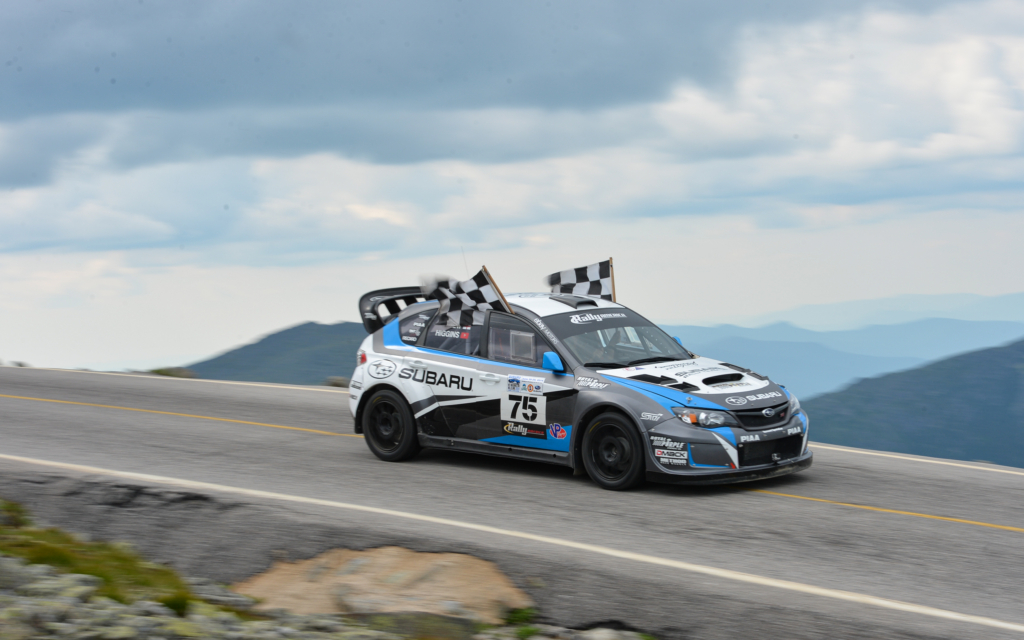

2014 VT14R Mt Washington Hillclimb

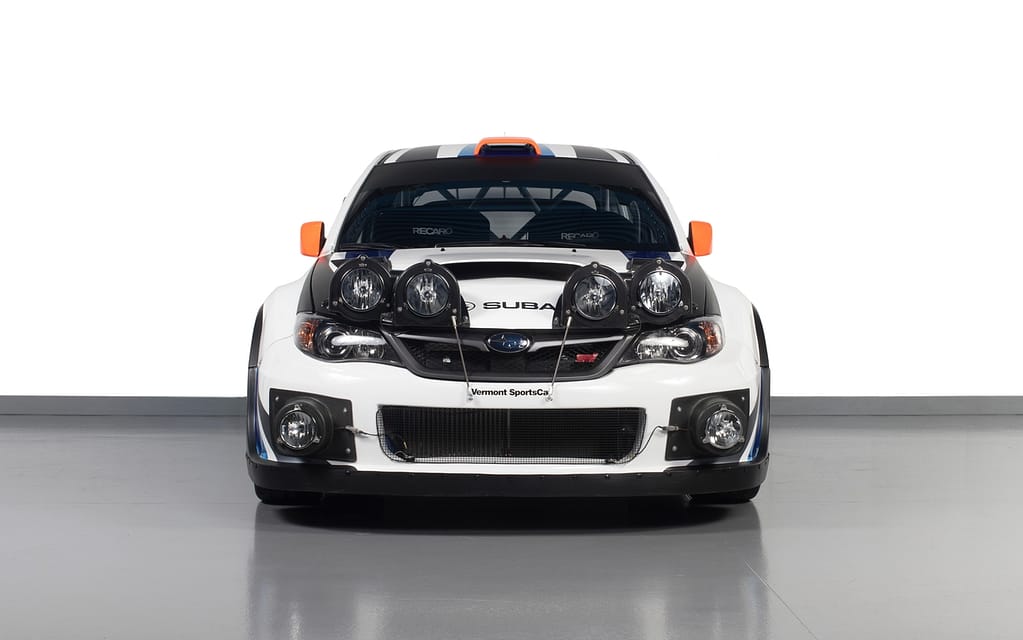

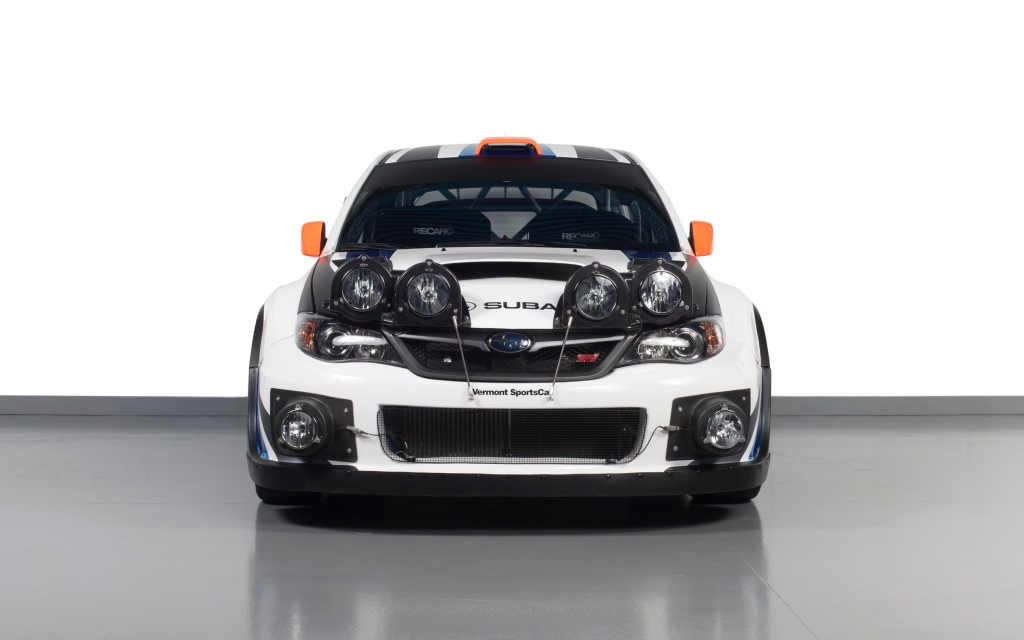

DUF 2150 w

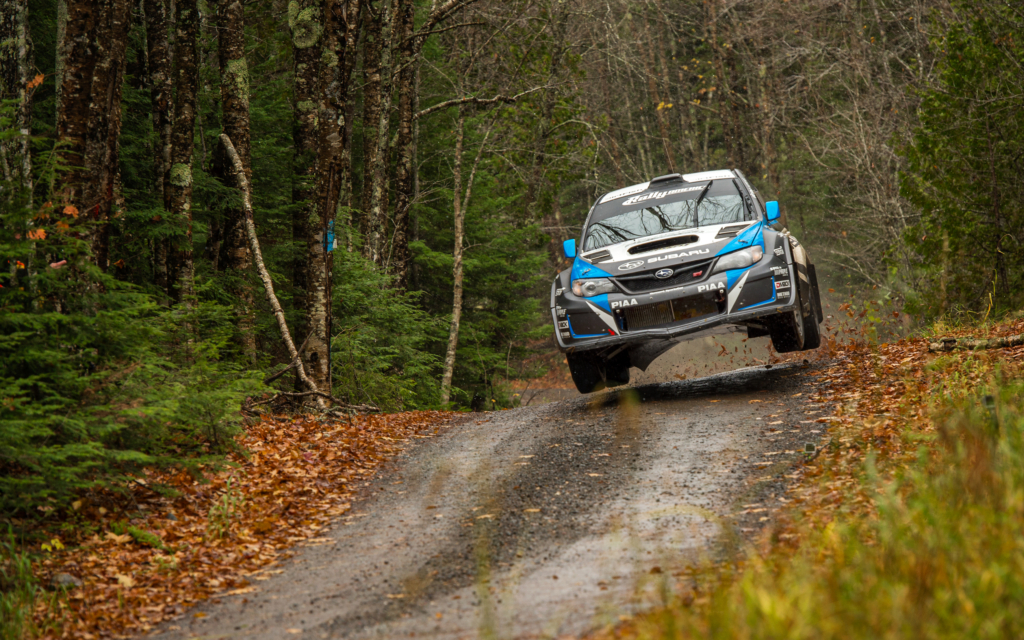

2014 VT14R LSPR Jump

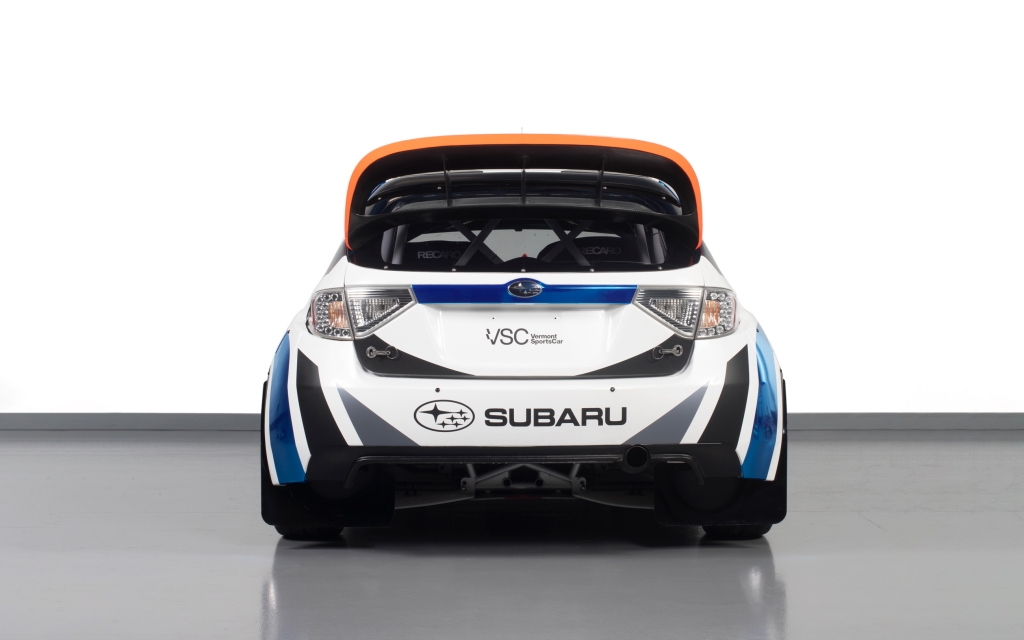

DUF 2113 w

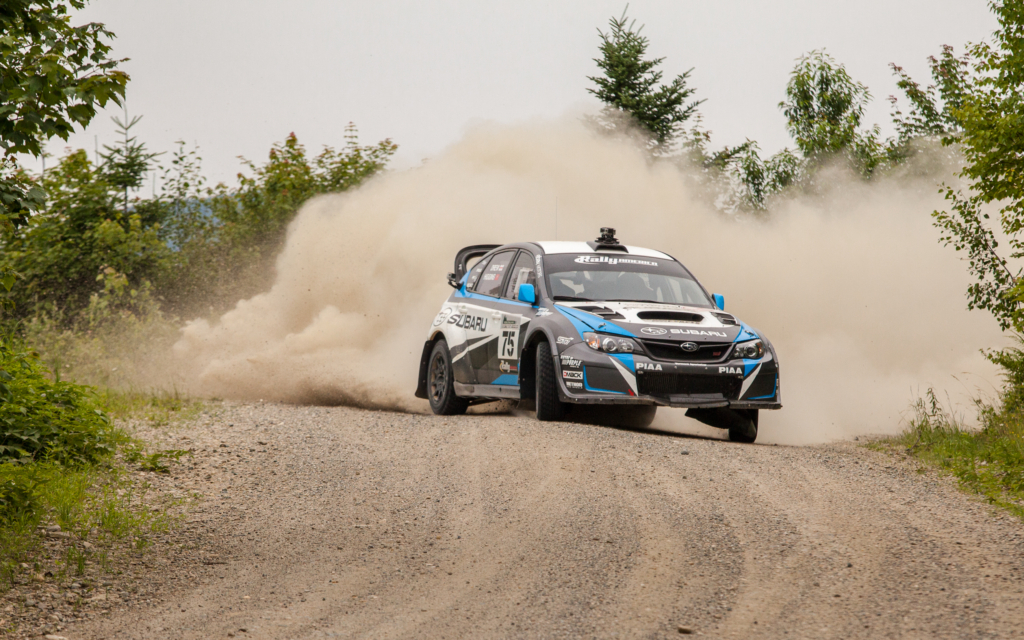

2014 VT14R NEFR Drift

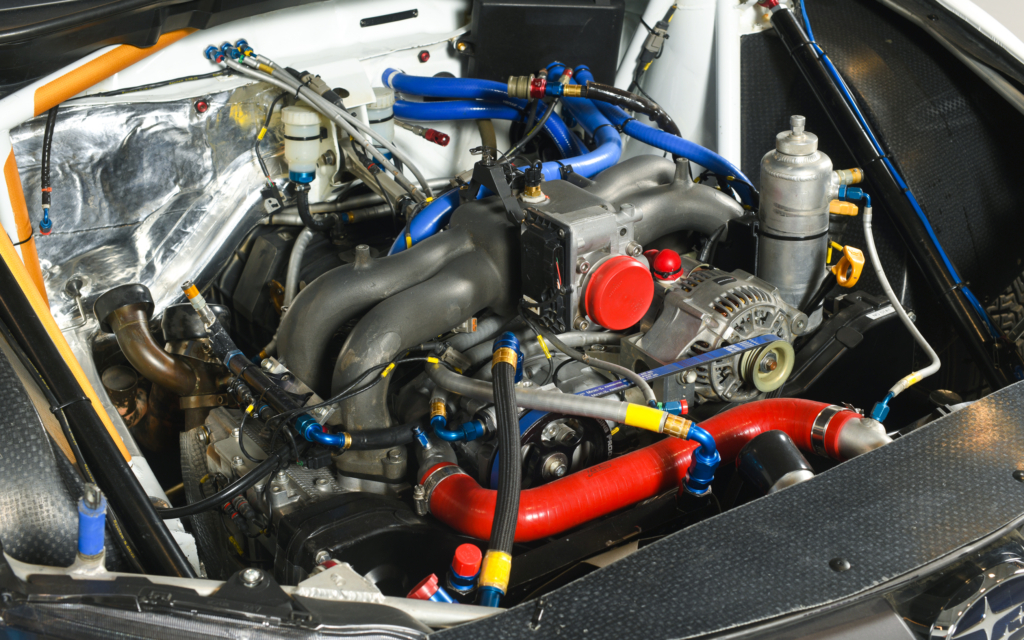

2014 VT14R Open Class Rally 10

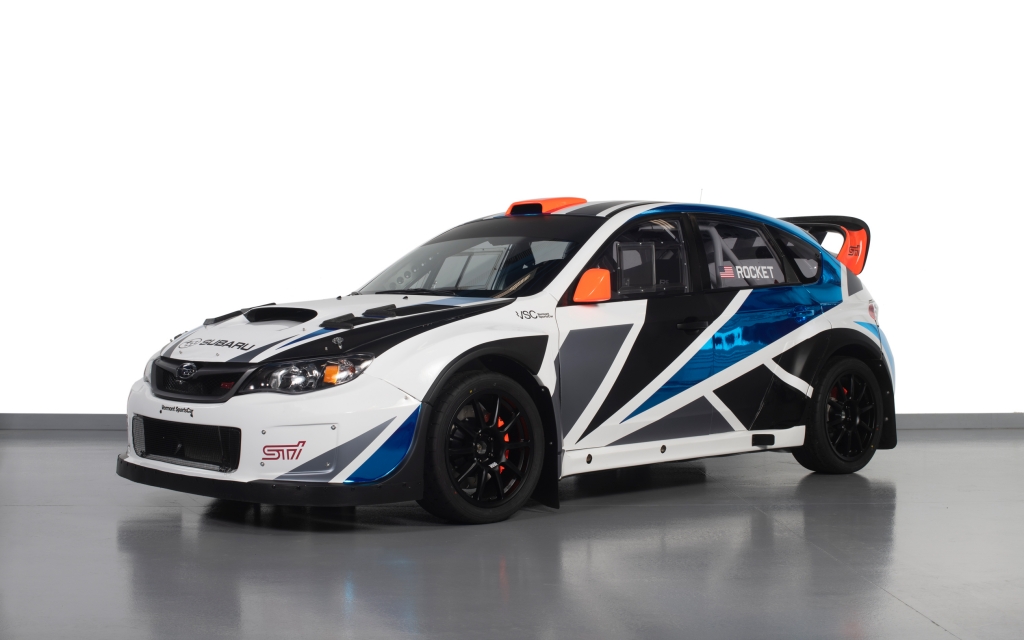

DUF 2092 w
